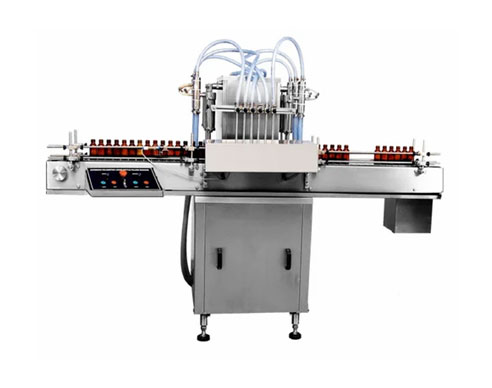

This machine employs a linear filling mechanism, incorporating a semi-automatic operation for controlled product transfer. The system utilizes vacuum technology to draw liquid into containers, ensuring consistent fill levels and minimizing product loss. MODEL DIMENSIONS (in mm.) POWER REQUIREMENT OUTPUT for 750 ml. L B MAIN M/c VAC. PUMP SVF – 12 1980 1880 2.5 HP 3.5 HP 40 – 50 BPM SVF – 16 1980 1880 2.5 HP 3.5 HP 50 – 60 BPM SVF – 20 1980 1880 2.5 HP 3.5 HP 70 – 80 BPM
Key Features:
Linear Filling Mechanism:
Provides a stable and controlled filling process.
Vacuum Filling Technology:
Ensures accurate and consistent fill volumes across containers.
• Semi-Automatic Operation:
Requires operator intervention for bottle loading and unloading, offering flexibility in production.
